MIG MAG Welding IP65 Servo Robot Laser Seam Tracker

Ask Lasest Price
Brand Name :	MEGMEET
Model Number :	IL-HSP series
Certification :	CE
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	50 sets /Month
Delivery Time :	7 working days after deposit

Add to Cart

Product Details
Company Profile

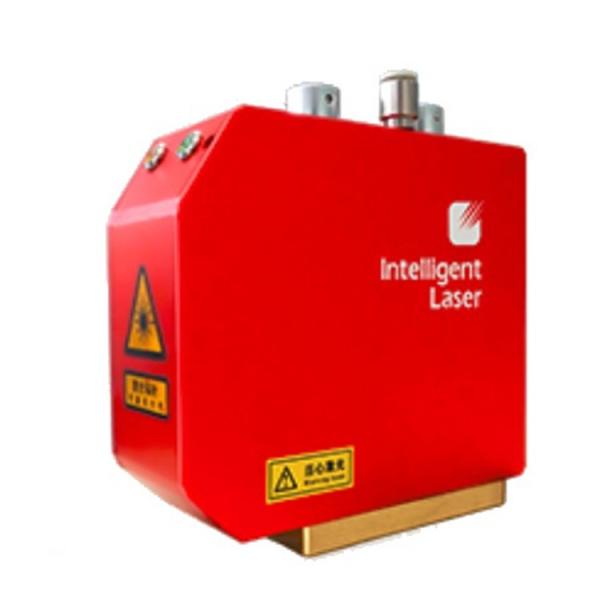

MIG MAG Welding IP65 Servo Robot Laser Seam Tracker

Laser velding seam tracking tracking system IL-HSP series

industrial robot vision system for welding requirement

Specification

	MODEL
Sensor data	IL-HSP-100SD01	IL-HSP-100SD02	IL-HSP-100SD03	IL-HSP-100SD04
Optimum viewing distance(mm)	100	98	100	150
viewing distance scope(mm)	92-109	76-130	84-120	111-216
Depth of focus(mm)	17	54	36	105
Field of view (mm)	10	32	21	34
Minimum welding seam gap can be detected(mm)	0.07	0.1	0.07	0.2
Weight(kg)	0.73	0.74	0.73	0.65
Working ternperature(°C)	5- 40
Protection level	IP65(Customizable IP67)

Product Description

SYSTEM COMPOSITION:

Intelligent laser welding seam tracking system is composed by laser sensor and control host.

Laser sensor is used for welding seam active acquisition and control host is used for welding

seam real time processing meanwhile keep conimunication with robot. It has locating and

tracking functions also can satisfy the need of intelligent welding requirement.

APPLICATION WELDING TECHNOLOGY:

•MIG welding • MAG welding • TIG welding •SAW

• Laser welding , Hybrid laser welding • Friction stir welding •Plasma wdding
